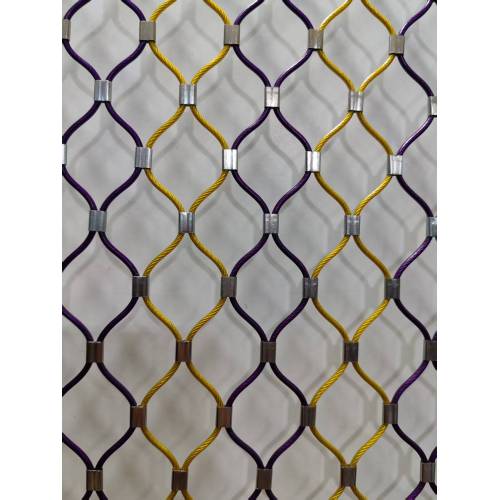

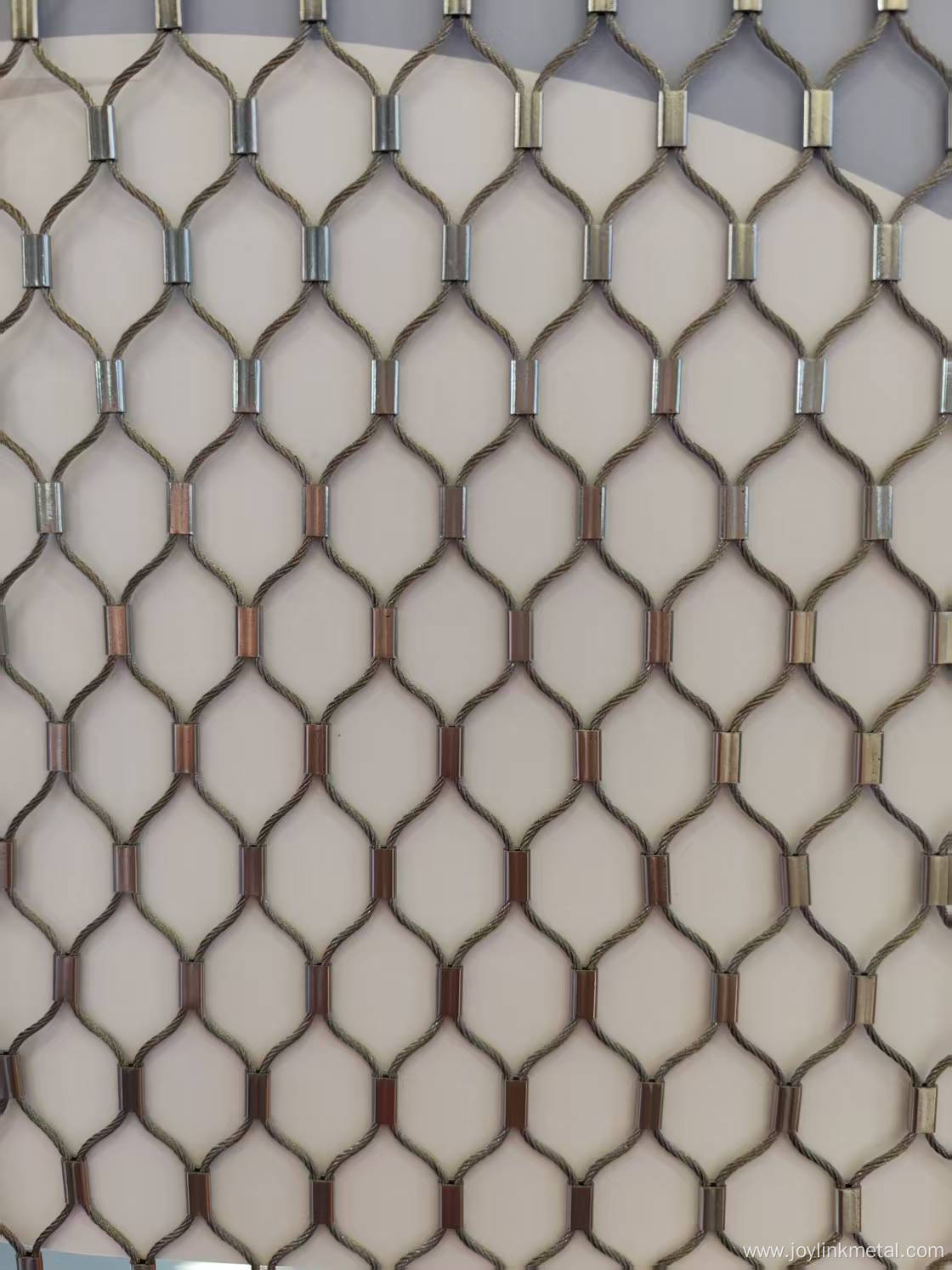

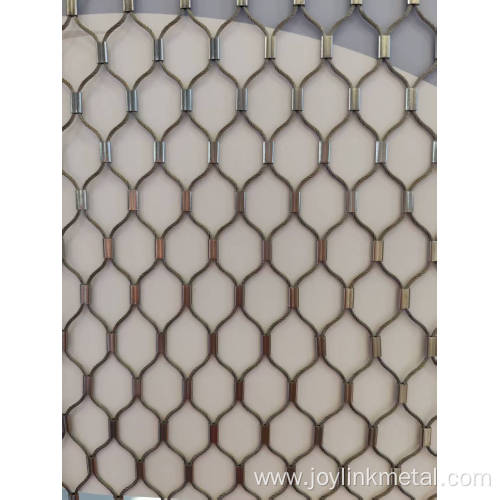

flexible Stainless Steel Rope Mesh

Specifications of Ferrule Cable Mesh

Material

• Stainless Steel Grades: Typically made from AISI 304 or AISI 316 stainless steel, providing excellent corrosion resistance and durability.

Wire Rope Construction

• Configurations:
  • 7 x 7: Composed of 7 strands with 7 wires each.
  • 7 x 19: Composed of 7 strands with 19 wires each, offering greater flexibility and strength.

Rope Diameters

• Available diameters include:
  • 1.2 mm
  • 1.6 mm
  • 2.0 mm
  • 2.4 mm
  • 3.2 mm

Mesh Aperture Sizes

• Customizable aperture sizes typically range from:
  • 40 mm x 69 mm
  • 50 mm x 87 mm
  • 60 mm x 104 mm
  • 70 mm x 121 mm
  • 80 mm x 139 mm
  • Additional sizes can be tailored based on project requirements.

Mesh Angle

• The standard mesh angle is typically set at 60°, which optimizes the tension and structural integrity of the mesh.

Panel Sizes

• Standard panel sizes can vary, but common dimensions include:
  • 10 m x 10 m (custom sizes available upon request).

Applications

• Zoo Enclosures: Provides secure habitats for animals while allowing visibility for visitors.
• Architectural Features: Used in balustrades, decorative facades, and green walls.
• Safety Nets: Employed in construction sites and other areas requiring fall protection.
• Agricultural Use: Effective for Fencing and controlling larger pests.

Benefits

• Durability: High resistance to weathering and corrosion ensures a long service life, often exceeding 30 years.
• Flexibility: The design allows the mesh to adapt to various shapes and structures.
• Aesthetic Appeal: Offers a modern look while maintaining functionality in safety and enclosure applications.
