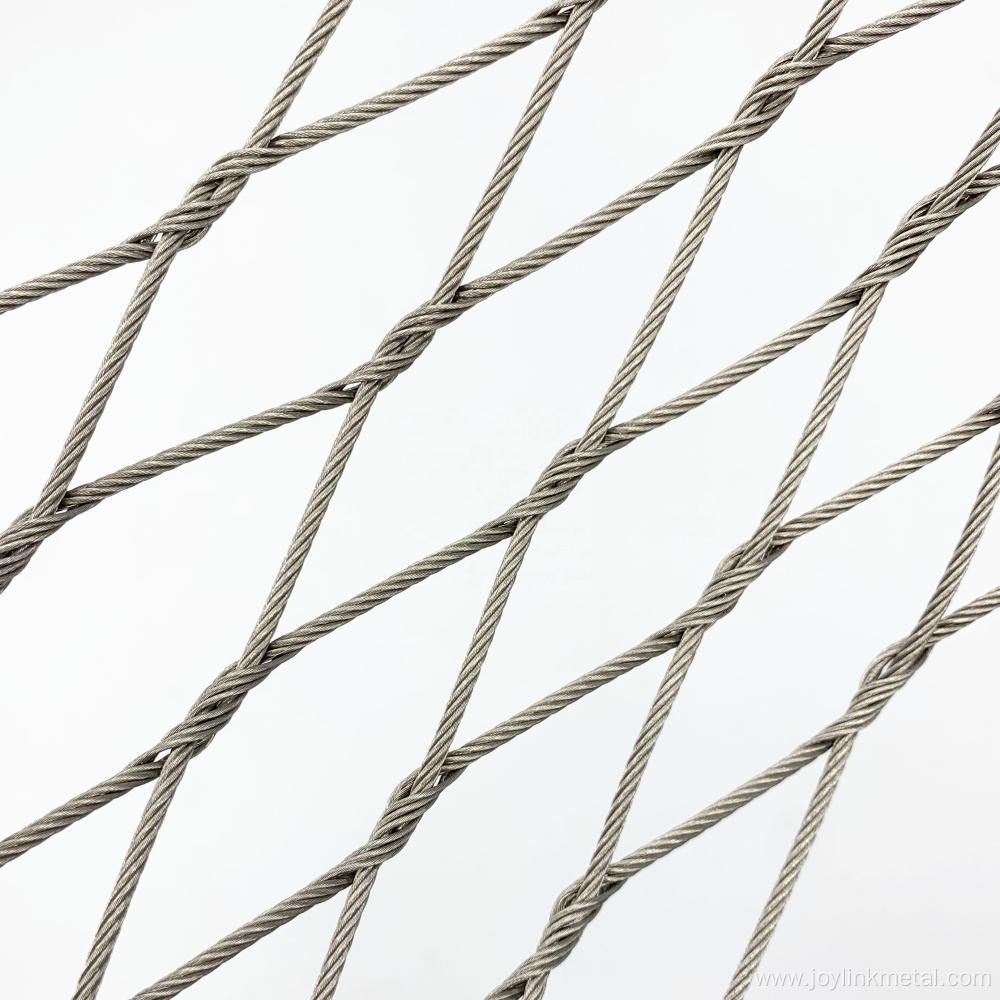

Interwoven stainless cable mesh

Key Features of Interwoven Cable Mesh

• Construction: Made from high-quality stainless steel wire ropes, typically in configurations such as 7x7 or 7x19 strands. The choice of strand structure often depends on the diameter of the wire rope, with 7x7 used for smaller diameters (less than 2.5 mm) and 7x19 for larger diameters.
• Mesh Design: The standard mesh openings are generally diamond-shaped, providing both strength and flexibility. The angle of the mesh openings can vary; for instance, some designs feature a 60-degree top angle.
• Weight and Flexibility: Compared to ferrule-type rope meshes, interwoven cable meshes are lighter and more flexible, allowing for easier installation and adaptability to different shapes.

Specifications

Material

• Stainless Steel Grades: Commonly made from AISI 304, AISI 316, or AISI 316L stainless steel.

Wire Rope Diameter

• Typical Range: From 1.2 mm to 3.2 mm.

Mesh Opening Size

• Standard Sizes:
  • Mesh sizes can vary from 20 mm to 120 mm, depending on the application requirements.

Panel Sizes

• Customization: Panels can be customized based on specific project needs; standard dimensions often include widths up to several meters.

Applications

• Architectural Features: Used in facades, balustrades, green walls, and decorative elements due to its aesthetic qualities and transparency.
• Zoo Enclosures: Provides secure habitats for animals while allowing visibility for visitors.
• Safety Barriers: Employed in construction sites and public spaces to prevent falls and enhance safety.
• Agricultural Use: Effective for fencing and protecting crops from larger pests.

Benefits

• Corrosion Resistance: The stainless steel material ensures longevity even in harsh environments.
• Visibility and Light Transmission: The open design allows for unobstructed views while maintaining security.
• Versatility: Can be used in a variety of applications from safety to decorative purposes.
