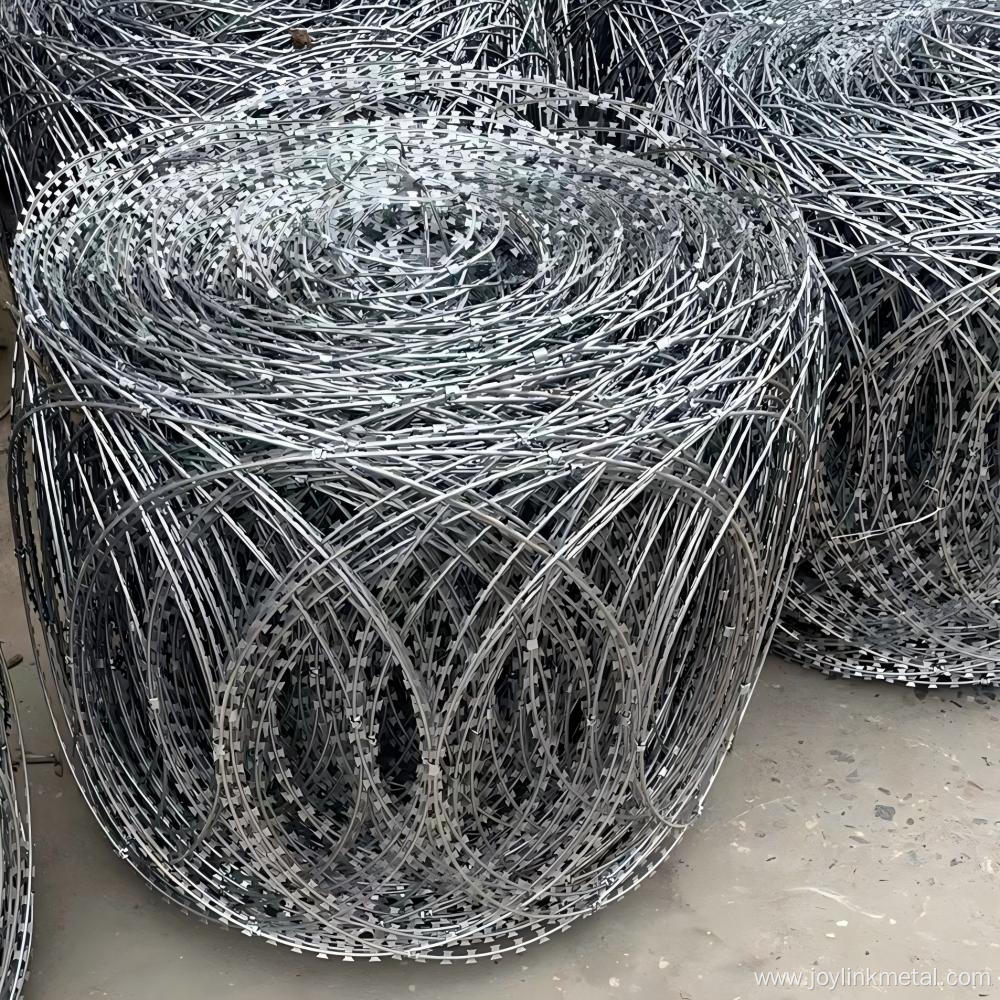

Flat Wrap Razor Wire Coils
Flat Wrap Razor Wire Coils
Flat Wrap Razor Wire Coils
Flat Wrap Razor Wire Coils

Flat Wrap Razor Wire Coils

Get Latest Price
Min. Order:1 Others
Contact Now
Product Description
Product Attributes
Packaging & Delivery
Product Description
Product Attributes

Brand: JoyLink

Packaging & Delivery
Selling Units : Others

The file is encrypted. Please fill in the following information to continue accessing it

Inquire the password
Product Description
Flat razor coils are a type of security fencing that utilizes Razor Wire in a flattened form for enhanced security and aesthetic appeal. Here are the detailed specifications based on the search results:

General Specifications

  • Material: High carbon or middle carbon steel sheet or stainless steel.
  • Core Wire Diameter: Typically 2.50 mm.
  • Blade Thickness: Generally around 0.50 mm.
  • Tensile Strength: Minimum of 160 kg/mm².
  • Zinc Coating: Hot dipped galvanized with a minimum coating of 200 g/m².

Dimensions and Weight

Specification Height Coil Length Weight per Coil Loops per Coil Clips per Coil
Standard Size 1 500 mm 15 m 9.5 kg 56 3
Standard Size 2 700 mm 15 m 13 kg 56 3
Standard Size 3 900 mm 15 m 14.5 kg 56 3
Flat Wrap Type Varies (e.g., 450 mm) Up to 16 m Approx. 1 kg/m Varies Varies

Additional Features

  • Coil Type: Cross type or flat wrap, designed to be installed on top of existing fences.
  • Ideal Stretching Length: Typically between 6 to 9 meters depending on the coil type.
  • Packaging: Each coil is usually wrapped in paper and hessian cloth for protection during transport.

Applications

  • Security Fencing: Used in residential, commercial, and industrial settings to deter unauthorized access.
  • Perimeter Protection: Effective for topping existing fences, enhancing overall security without taking up additional space.
Flat razor coils provide a practical and effective solution for enhancing security while maintaining a more aesthetically pleasing appearance compared to traditional razor wire.
