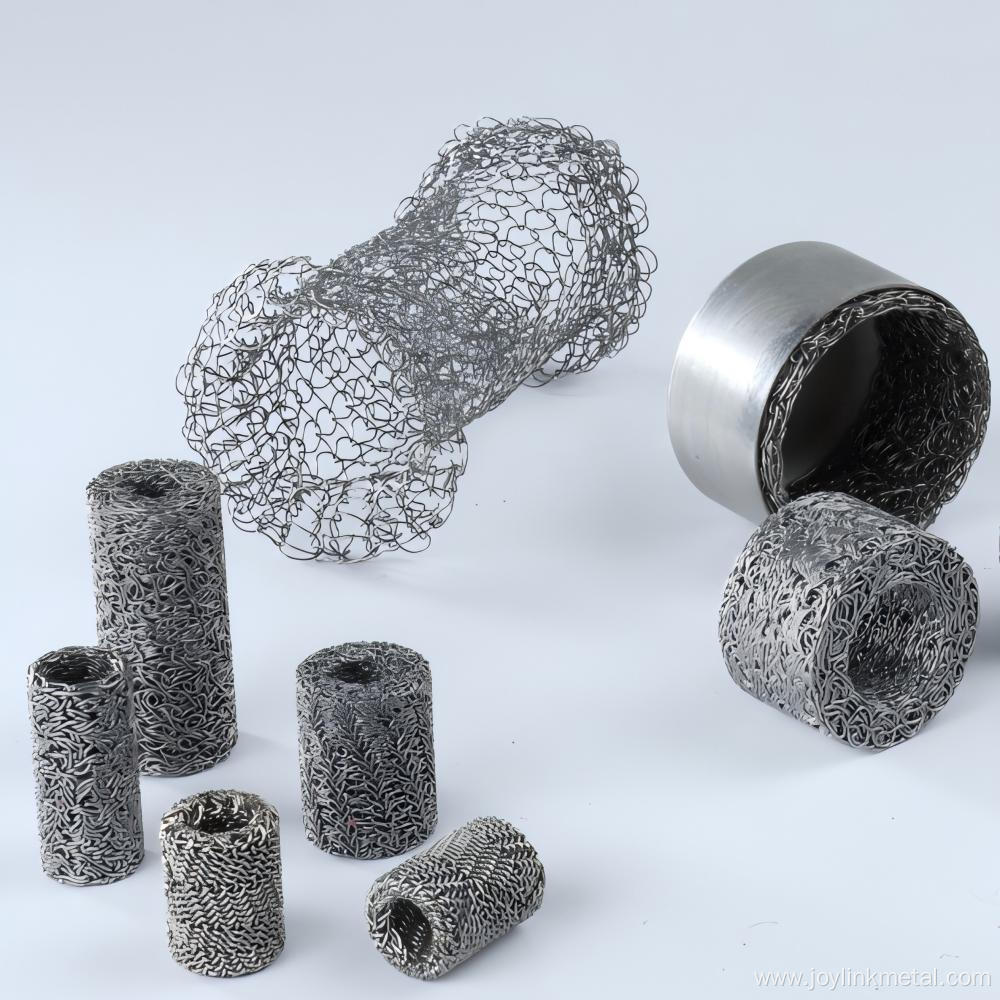

Compressed knitted wire mesh

Material Composition

• Common Materials:
  • Stainless Steel
  • Copper
  • Brass
  • Nickel

Wire Diameter

• Typical Range: Generally ranges from 0.11 mm to 0.40 mm, depending on the specific application.

Mesh Structure

• Manufacturing Process: Produced by knitting wire into a mesh structure and then compressed using specialized equipment to achieve desired thickness and density.
• Mesh Opening Size: Varies based on design needs, commonly between 2 mm to 6 mm.

Dimensions

• Width Options: Available in widths from 25 mm to over 1000 mm.
• Roll Lengths: Offered in various lengths, such as 20 m, 30 m, or custom lengths.

Performance Characteristics

• High Strength and Rigidity: Compressed knitted mesh maintains structural integrity under pressure.
• Abrasion and Corrosion Resistance: Suitable for harsh environments.
• Temperature Resistance: Can withstand high and low temperatures.

Applications

• Filtration Elements: Effective in gas and liquid filtration systems.
• Shielding Applications: Provides electromagnetic interference (EMI) shielding in electronic devices.
• Sealing Solutions: Used in gaskets for sealing applications due to its compressibility.
• Shock Absorption: Employed in applications requiring shock dampening properties.

Advantages

1. Easy Assembly and Maintenance: The mesh is designed for straightforward installation and cleaning.
2. Durability: Offers a long service life due to its robust construction and resistance to wear.
3. Versatile Shapes: Can be produced in various shapes, including discs, rings, and custom profiles.
4. High Filtration Efficiency: Particularly effective at filtering fine particles from gases or liquids.
