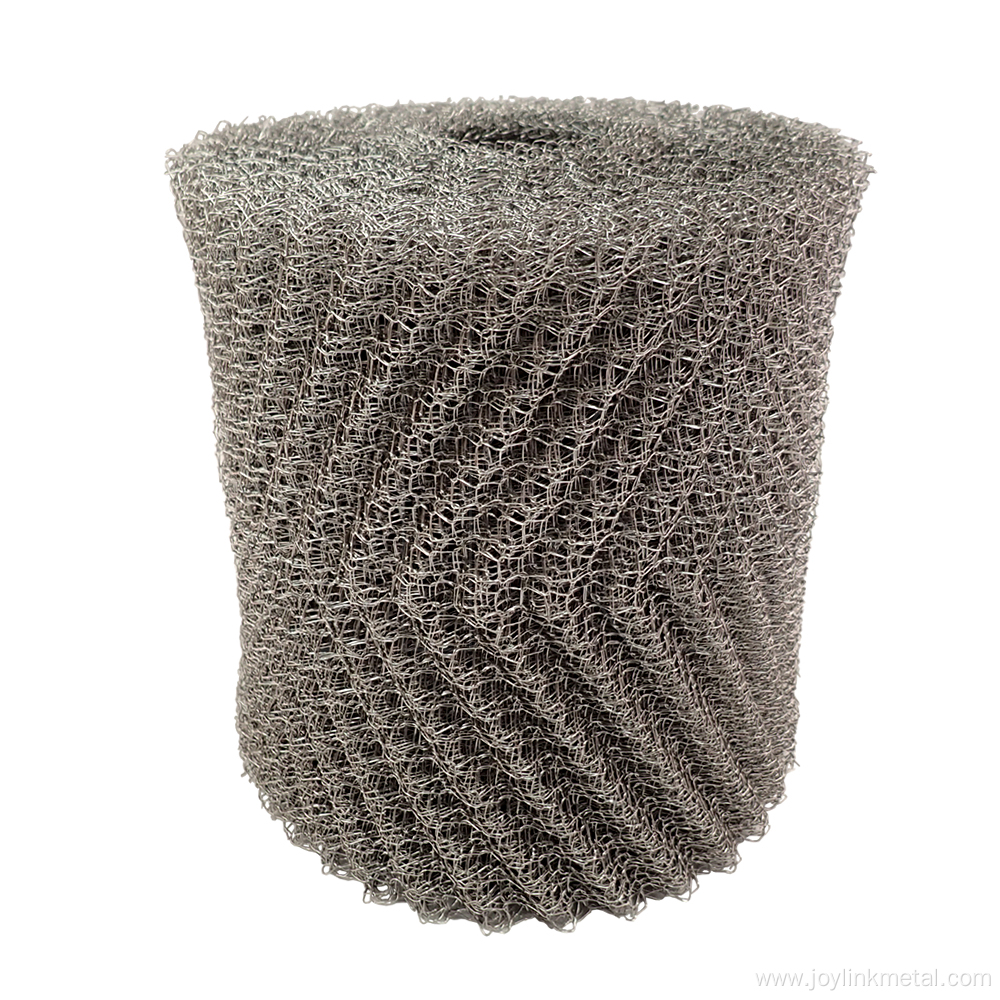

Ginning knitted wire mesh

Definition

Specifications

Materials

• Common Materials:
  • Stainless Steel (e.g., AISI 304, AISI 316)
  • Copper
  • Brass
  • Nickel
  • Polypropylene (PP)

Wire Diameter

• Typically ranges from 0.1 mm to 0.4 mm, depending on the specific application requirements.

Mesh Structure

• Opening Size: Varies based on design needs, commonly between 2 mm to 6 mm.
• Width Options: Available in widths from 25 mm to over 1000 mm.
• Roll Lengths: Offered in various lengths such as 20 m, 30 m, or custom lengths.

Types of Ginning Shapes

• Twill Corrugated Shape: Provides a unique texture and filtration properties.
• Herringbone Corrugated Shape: Offers enhanced strength and filtration efficiency.

Applications

• Automotive: Used in air filters and engine breathers.
• Electronics: Provides EMI shielding for sensitive components.
• Aerospace and Military: Serves in applications requiring high durability and reliability.
• Industrial Consumer Goods: Used in various machinery and equipment for filtration and protection.
• Medical Equipment: Employed in devices requiring high hygiene standards.

Advantages

1. Customizability: The ability to adjust shapes, widths, and depths to meet specific application needs.
2. Enhanced Filtration Performance: Particularly effective in oil-gas separation processes when compressed into a denser form.
3. Corrosion Resistance: Stainless steel options provide excellent resistance to rust and degradation.
4. Flexibility and Strength: The knitted structure allows for easy manipulation while maintaining strength.
