Concrete reinforcement fiberglass mesh

Key Products

Specifications

• Material: Made from alkali-resistant E-glass fibers, providing high tensile strength and durability.
• Mesh Sizes: Common mesh sizes include 4x4 mm, 5x5 mm, and 10x10 mm.
• Weight: Typically ranges from 80 g/m² to 160 g/m².
• Alkali Resistance: Specifically designed to withstand high pH environments, making them suitable for use with cement-based products.

Applications

1. Concrete Walls: Used to reinforce concrete walls against cracking and improve overall strength.
2. Stucco and EIFS Systems: Provides structural support in exterior insulation and finish systems.
3. Plastering: Enhances the durability of plastered surfaces by preventing cracking.
4. Tile Backing: Serves as a backing material in tile installations to increase stability.

Benefits

• High Strength-to-Weight Ratio: Offers excellent reinforcement without adding significant weight.
• Durability: Resistant to moisture, chemicals, and UV exposure, extending the lifespan of structures.
• Flexibility: Can easily conform to various shapes and surfaces during installation.

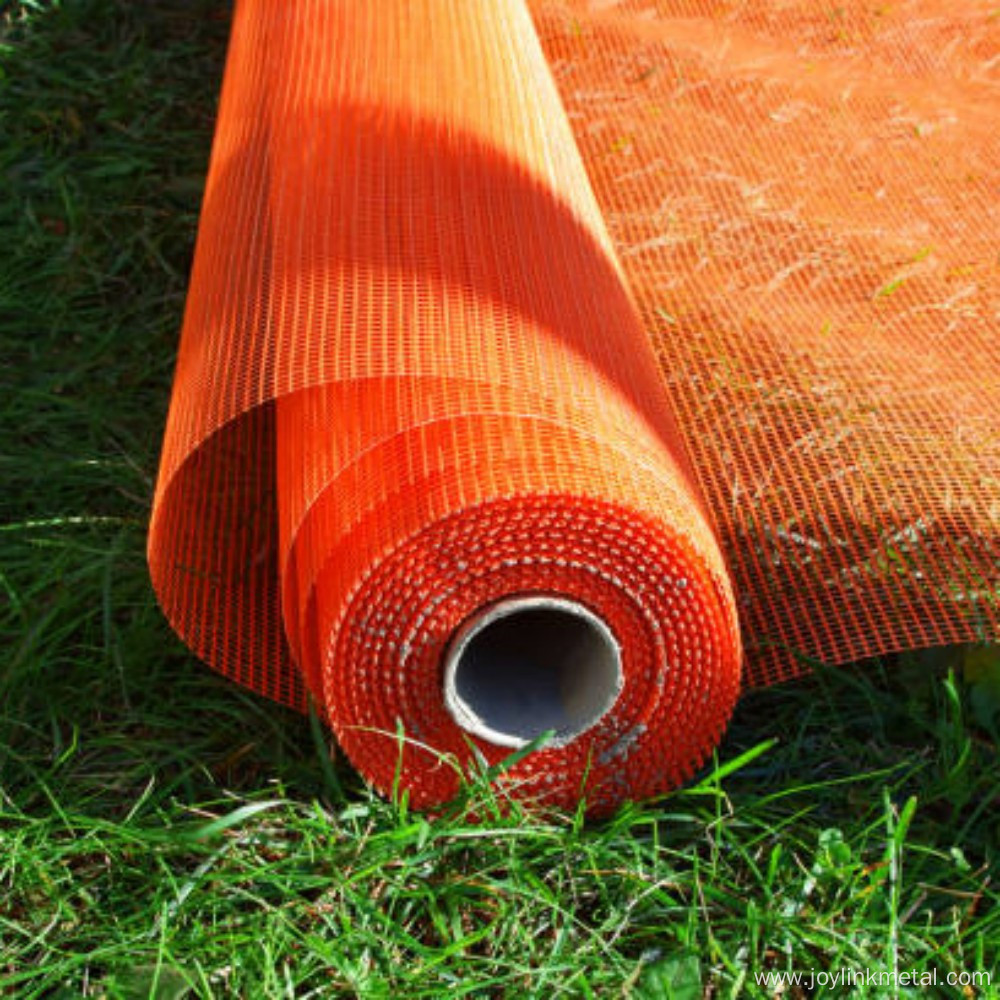

Fiberglass Mesh For Concrete Reinforcement With 100g 5x5mm

Product Description

Fiberglass mesh products is an ideal for reinforcing external render and external wall insulation system’s, the mesh provides high impact resistance to all render and plaster systems. The fiberglass mesh also can be used for the reparation of cracks and when applying plasters to wooden substrates/drywall, or to uneven surfaces such as existing tiles.
Fiberglass mesh is on the basis of C-glass fiberglass woven fabric, and then coated with alkali-resistant liquid. Fiberglass mesh is the ideal construction material for EIFS (exterior insulation and finish system), widely used for wall reinforcement, roof waterproof,reinforce cement, plastic, bitumen, plaster, marble, mosaic, etc. We can produce customized weight & size & color size mesh according to your requirement.

Conventional Packing:

Each roll in plastic bag, then 2 rolls per woven bag.
Each roll in plastic bag, then 2 or 4 or 6 rolls per carton.
For LCL shipment, it can be 36 rolls per pallet if requested.
60000 Square Meters per 20’GP.
135000 Square Meters per 40’HQ.

Three Grades In Total

(1) Emulsion Grade A: The mesh is soft and high strength, not easy to break.
(2) Emulsion Grade B: Medium grade than Emulsion Grade A.
(3) Urea Glue Grade C: The mesh is stiff and low strength but it is cheap.

Benefits

(1) Easy to install, by embedding in to wet base coat render especially for large surface areas.
(2) Durable and resistant to chemical agents.
(3) Corrosion and alkali resistant.
(4) Light and easy to transport.
(5) Adaptable to uneven surfaces.
(6) Easy and safe to use and has a triple coated resin coating to prevent fraying.

Product Display
